    Pre Engineered Steel Building Warehouse With Q355B / Q235B Frame

    Ask Lasest Price
    Brand Name : YDX
    Model Number : YDX-5S14
    Certification : CE ISO SGS
    Price : $35.00-$63.00
    Payment Terms : T/T
    Supply Ability : 10000 tons/month
    Delivery Time : 20-30 works days
    • Product Details
    • Company Profile

    Pre Engineered Steel Building Warehouse With Q355B / Q235B Frame

    Pre-engineered Steel Structure Warehouse with Q355B/Q235B Frame

    Steel Structure Features:

    High Strength & Durability – Made from high-quality steel, the warehouse structure offers superior load-bearing capacity, resistance to harsh weather, and long-term stability.
    Large Clear Span Design – Eliminates the need for internal columns, maximizing usable space for storage, machinery, or operations.
    Quick & Easy Installation – Pre-engineered steel components allow for fast assembly, reducing construction time and labor costs.
    Customizable Design – Flexible layouts to accommodate different sizes, heights, door placements (overhead, roll-up), and ventilation needs.
    Low Maintenance – Corrosion-resistant coatings (e.g., galvanized or painted steel) minimize upkeep costs over time.
    Cost-Effective Solution – Lower construction expenses compared to traditional materials, with long-term savings due to minimal repairs.
    Fire & Pest Resistance – Steel is non-combustible and immune to termites or rodents, enhancing safety and longevity.
    Eco-Friendly & Recyclable – Steel is 100% reusable, reducing environmental impact and supporting sustainable construction.
    Excellent Seismic & Wind Resistance – Engineered to withstand earthquakes, heavy snow loads, and strong winds for reliable performance.
    Energy Efficiency Options – Can be insulated with panels or cool roofing systems to regulate temperature and reduce energy costs.
    Product Specifications
    AttributeValue
    BuildingPrefabricated Steel Structure
    Product ResistanceCorrosion Resistant
    Product UsageBuilding Construction
    ResistanceCorrosion-resistant
    Product TypeConstruction Material
    Building TypeFrame
    Applications
    Housing Construction
    Tower Masts
    Containers
    Steel Pipes
    Ocean Engineering
    Bridges
    Municipal Facilities
    Mechanical Equipment
    Household Items
    Plantation Facilities
    Technical Specifications
    Main Steel Frame
    Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
    Surface: Hot Dip Galvanized or Painted
    Connection: All Bolts Connection
    Supporting System
    Roof Purlin: C or Z Section Steel, Q235B
    Wall Purlin: C or Z Section Steel, Q235B
    Bracing: Steel Rod, Q235B
    Cross Support: Steel Rod, Q235B
    Column Support: Angle Steel; Steel Rod; Q235B
    Angle Brace: Angle steel, Q235B
    Tie Bar: Steel Pipe, Q235B
    Roof & Wall System
    Single Colorful Corrugated Steel Sheet (0.3-0.8mm thickness)
    Sandwich Panel with EPS, Rock Wool, Fiberglass, PU (50-150mm thickness)
    Accessories
    Doors: Sliding; Rolled Up Door (Manual/Auto)
    Windows: Aluminum Alloy; PVC
    Downspout: PVC pipe
    Gutter: Galvanized Steel Sheet; Stainless Steel
    Ventilator: Stainless Steel Turbine Ventilator
    Skylight Belt: FRP or PC semi-transparent Skylight Belt
    Flash: Color Steel Sheet
    Fittings: Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc
    Product Images

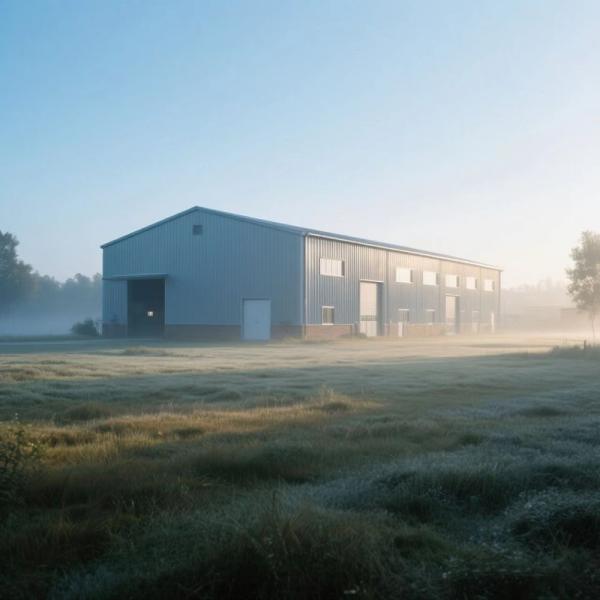

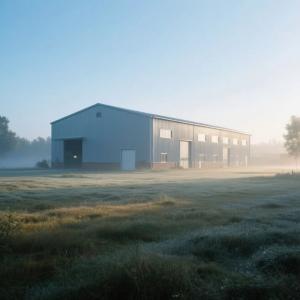

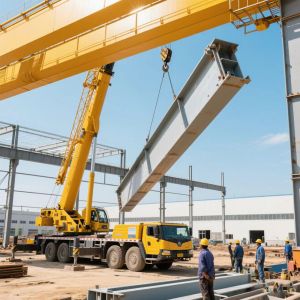

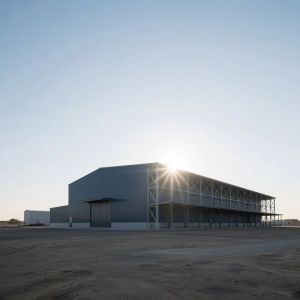

    Pre-engineered steel structure warehouse exterior view Steel frame construction detail Steel warehouse interior with roof structure Completed steel structure warehouse installation Steel frame components and connection details
